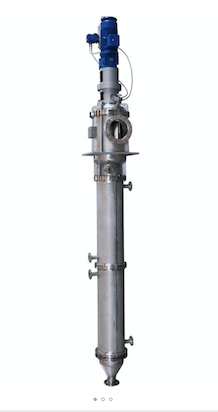

LeafVertical Agitated Thin Film Evaporator TFE/L - HV consists of a cylindrical, heated, vertical vessel and a high-speed rotor that maintains a film of product against the wall in highly turbulent conditions, a distributor mounted in front of the inlet of the product and a dynamic droplet separator.

FEATURES

1. Vertical arrangement, from 0,15 to 40 m2 (larger on request)

2. Best choice for general applications

3. Suited for vacuum from 1-2 mbar abs to the atmosphere, or positive pressure

4. Non-contacting L-type lobed rigid rotor with fixed and well-defined clearance from the heated wall

5. The rotor sweeps the heated surface with a gap of some mm, this results in a great liquid turbulence

6. Wide range of viscosity

7. Moderate concentration ratios

8. Special execution for high viscosity applications (type HV), with toothed lobed rotor

9. Top bearing is a grease lubricated sturdy roller bearing

10. Bottom pillow is normally a sleeve bearing, working into the process atmosphere, with several lubrication options, but we can supply needle bearings also, with sealing from the process side
