The Butterworth Type LTQ automated tank cleaning machine provides 360° impact indexed coverage for the cleaning of the inside of tanks and process vessels.

Industries
The Butterworth Type LTQ is a highly versatile machine and is applicable in most all types of tanks for process, storage, and transportation. Tank capacities range from 13,000 to 130,000 US gallons (50-500 M3).

Operational

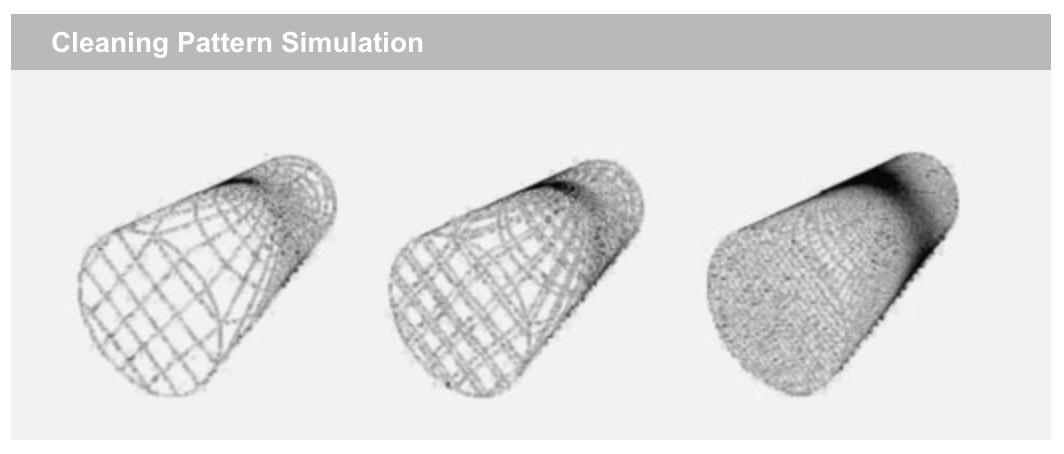

The Butterworth Type LTQ machine creates a pattern matrix similar to a ball of twine (see cleaning pattern simulation in the lower right hand corner of this page). A complete pattern is established when 65 axial revolutions of the body have been completed. During the process of this pattern build out, 8 cycles are established with each cycle increasing the density of the pattern matrix.

User Benefits
• Hygienic design
• High jet-stream impact
• Reduced cleaning times
• Reduced effluent generation
• Reduced energy costs
• 100% self-rinsing (for specific models)
• Improved capital equipment utilization

Specifications Summary

Pressure Range: 0-300 PSI (21 Bar)
Flow Range: 0-170 USGPM (39 M3/hr)
Maximum Temperature: Static:  300°F (149°C), Operational: 300°F (149°C)

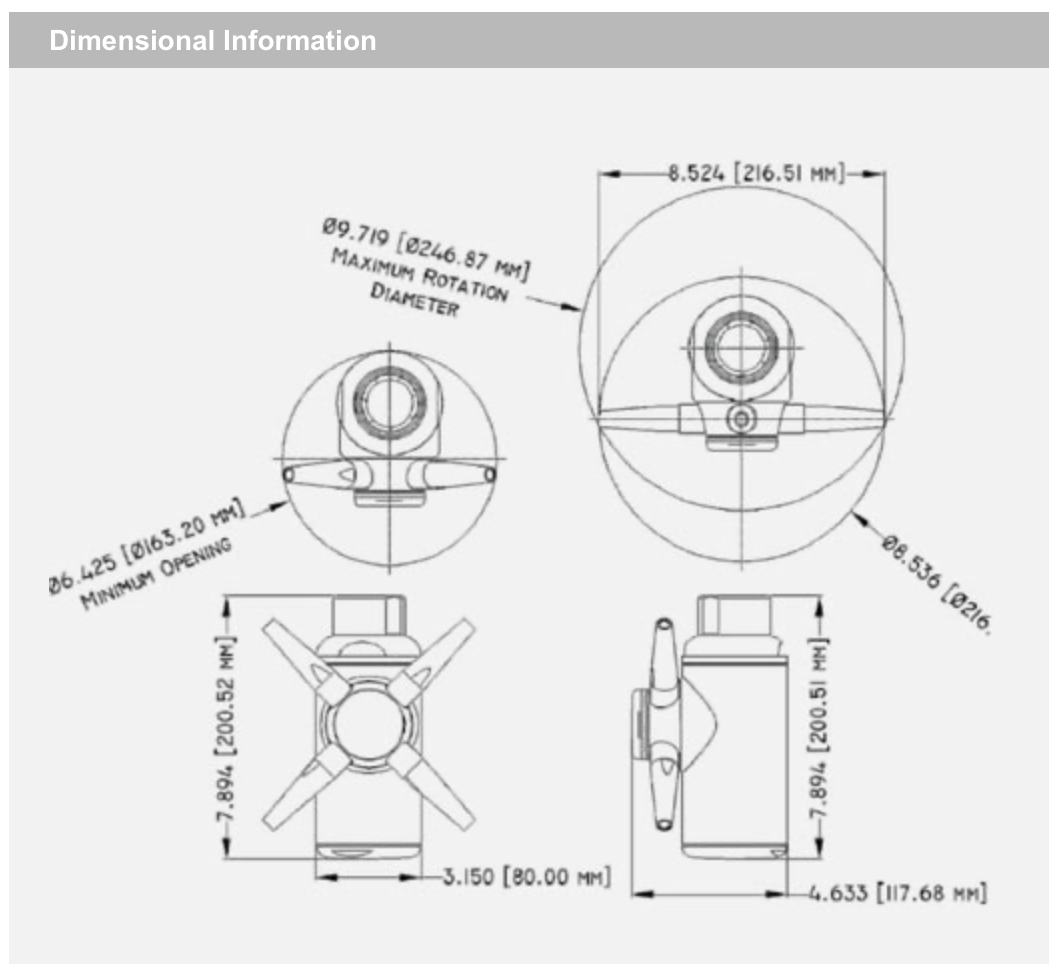

Minimum Opening: 6.4173″ (163 mm)
Drive Type: Integrated turbine and shaft
Materials of Construction (As Standard): 316 Stainless Steel/CD4-MCU Duplex S/S. See manual for parts detail
Lubrication: Flow-through (media lubricated)
Weight: 14 lbs. (6.35 kg)
