The Butterworth UBA Rotating Spray Ball is designed to distribute cleaning media in tanks ranging in size up to 22 feet (6.7 meters). The UBA is a single axis rotary spray ball that projects a predetermined spray pattern within a given tank geometry. The rotation of the spray ball is controlled mechanically to avoid over rotation, which would result in reduction of spray radius and impact values of the media.

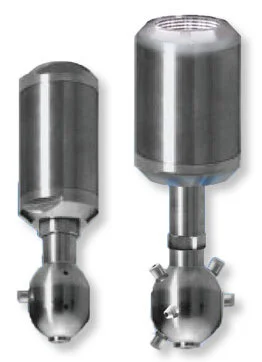

Left picture: Type UBA 2500 Single-Axis Rotating Spray Ball
Right picture: Type UBA 3150 Single-Axis Rotating Spray Ball

Applications Benefits

Increased cleaning radius over non-controllable rotating spray ballsLower cost compared to 3D machinesMinimal maintenance requirements

Specifications Summary

Maximum Pressure: 300 PSIG (20.7 Bar)
Maximum Temperature: Static and Operational: 300ºF (149ºC)
Materials of Construction: 316L Stainless Steel. Other materials on request.
Weight: UBA2500 : 2.1 lbs (0.95 kg), UBA3150 : 5.3 lbs (2.5 kg)
