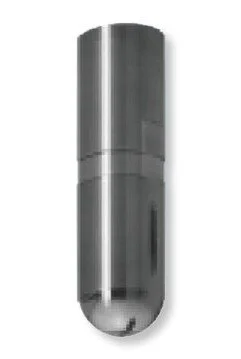

The Butterworth UBF rotating spray head offers 270° coverage for
the cleaning of the inside of small tanks, process vessels, pipes,
and other small containers.

Industries

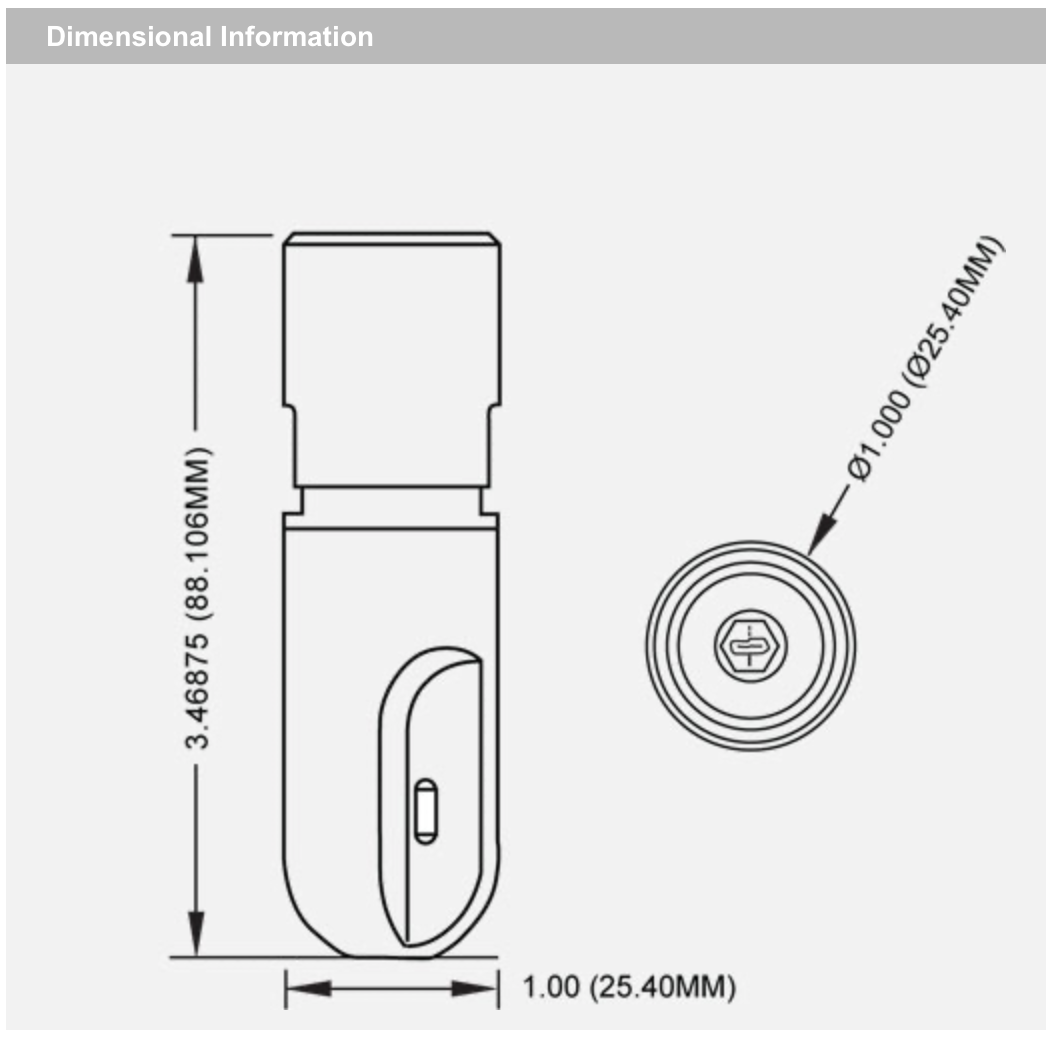

The Butterworth UBF has been designed to fit through an opening
as small as 1.00″ in diameter. As standard, made completely
of high quality 316L stainless steel with a high polished finish.
Typical uses are small comtainers used within the beverage
industry; small bore pipes, and as augmentation to larger CIP
installations.

Operational
The Butterworth UBF is a Rotating Spray Head (RSH) and
completes a full pattern in one rotation of the head. The higher the
inlet pressure, the faster the rotation of he head itself. The amount
of run time and pressure will vary… depending on the cleaning
requirement.

User Benefits
• Reduced Cleaning Times
• Reduced Effluent Generation
• Reduced Energy Costs

Specifications Summary

Pressure: Range : 0-200 PSIG(0-13.79 bar), Optimal : 100 PSIG (6.89 bar)
Maximum Temperature: Static : 300° F (149° C), Operational : 205° F (96° C)
Connection Types: 50″ NPT (F) threads as standard; others on request
Surface Finish: Standard : 25-35 Ra μ, Electropolished : ≤20 Ra μ
Materials of Construction (As Standard): All : 316L Stainless Steel
Lubrication: Lubricated by fluid flowing through the device (Optimal will vary on the application)
Weight: 316L Stainless Steel : 0.545 lbs (.247 kg)
