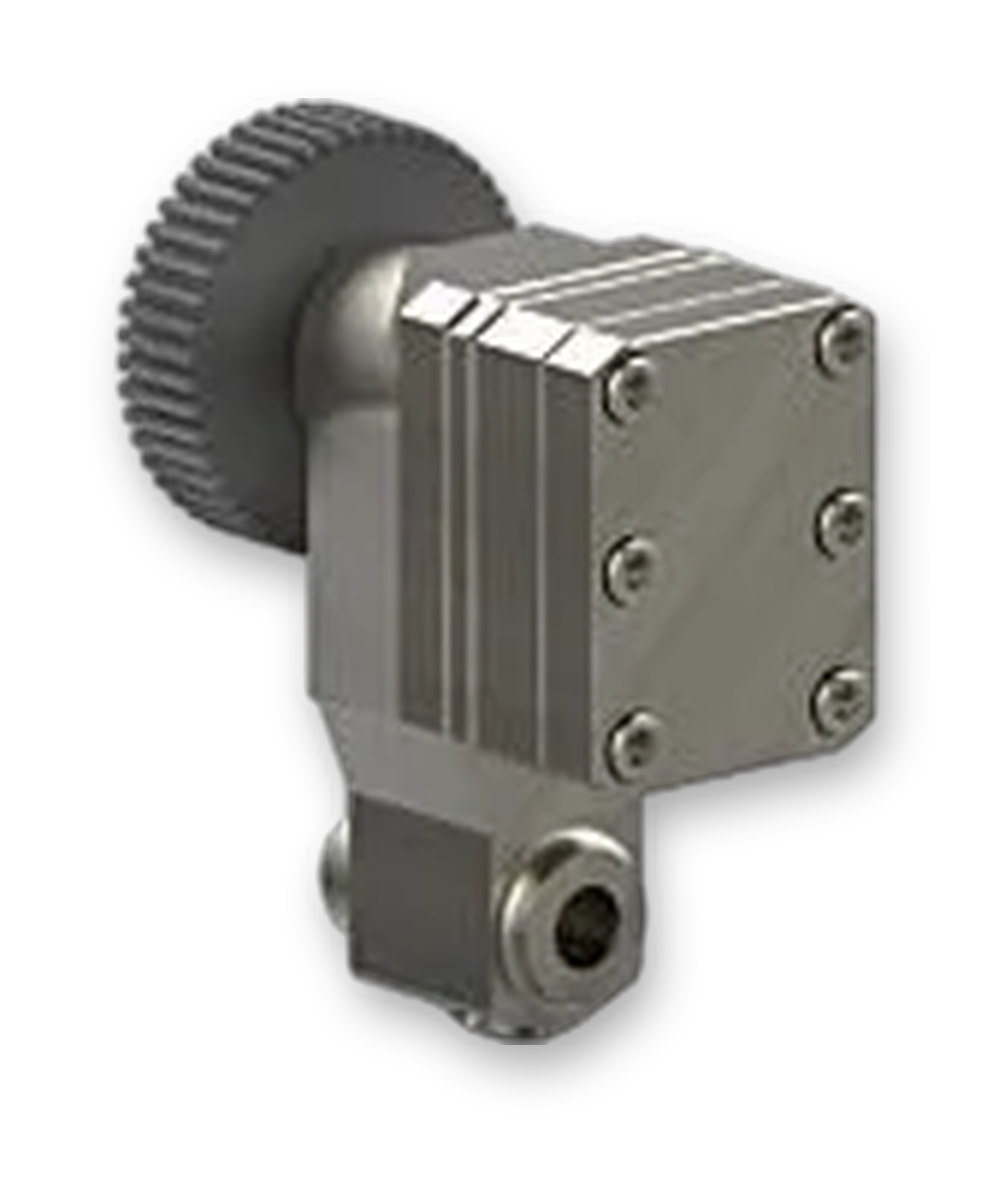

ZENITH BMB & BMC PUMPS
Designed to provide stable, precise, repeatable flow control of process fluids despite variations in temperature, viscosity, and pressure. The Zenith BMB/BMC Series pumps are broadly applied to metering services such as colorings, catalysts, resins, flavorings, perfumes, vitamins, oils, binders, adhesives, coatings, inhibitors, paints/varnishes, polymers, lubricants, dyes, defoamers, pharmaceuticals, urethanes, fuels, viscose, and many others for the world’s top industrial companies.
BMB Stats: Available capacities: 5 to 6 cc per rev. Flow rate: 0.88 – 16 GPH. Max operating temperature: 300 F (150C). Max inlet pressure up to 300 psi. Max discharge pressure up to 1,000 psi. Viscosity range up to 100,000 cp
BMC Stats: Available capacities: 11.1 to 27.8 cc per rev. Flow rate: 1.79 – 79.3 GPH. Max operating temperature: 300 F (150C). Max inlet pressure up to 300 psi. Max discharge pressure up to 500 psi. Viscosity Range up to 100,000 cp
Zenith BMB/BMC Series pumps offer the metering benefits of the well known Zenith BPB series except in larger displacement designs. Dependable control of critical process streams or additives is equally important at higher flowrates, and Zenith BMB/BMC Series pumps often pay for themselves in savings in less than one year when they are used to replace less accurate metering methods. The reliable, repeatable, pulseless metered flow from a Zenith pump improves process control and mixing while eliminating costly overdosing
Benefits and Features:
High Accuracy - stable, repeatable flow control despite process variations in temperature, viscosity, and pressure.
High Pressure - precision manufacturing techniques hold tolerances to + .00005" (1.25 micron), allowing gear clearances to be kept to a minimum and high process pressures to be achieved.
Pulseless - precise, rotary spur gears provide smooth, continuous, pulseless flow.
Valveless - precision metering gears eliminate trouble- some check valves used in reciprocating pumps.
Active Flowmeter - unparalleled mechanical precision combined with a closed-loop Zenith ZeDrive TM 2000 controller ensures exact flow control without the addition of expensive flowmeters.
Long Life - only three moving parts - components throughhardenedtoR c-54orhigherforwearresis- tance and strength.
Multi-pump Ratio Capability - outer drive gear allows multiple pumps to be driven at different gear ratios by a single motor.
