These pumps are compact, reliable, and rugged having the patented LEWA DPS diaphragm protection system. These pumps achieve flow rates of up to 180 m³/h and discharge pressures of up to 1200 bar.

Whether in the oil and gas industry, the chemical industry, the food industry or the energy sector, the LEWA triplex diaphragm process pump has been used everywhere in high-pressure applications. It is the right solution all industries and for a wide variety of fluids. Thanks to the space-saving monoblock design, it is also ideally suited for small installation spaces.

The pump features tried-and-tested, patented LEWA diaphragm technology, absolutely secure and reliable operation and the world’s most compact design for a process pump. It also has the advantages of a long service life, minimal life cycle costs and high energy efficiency.

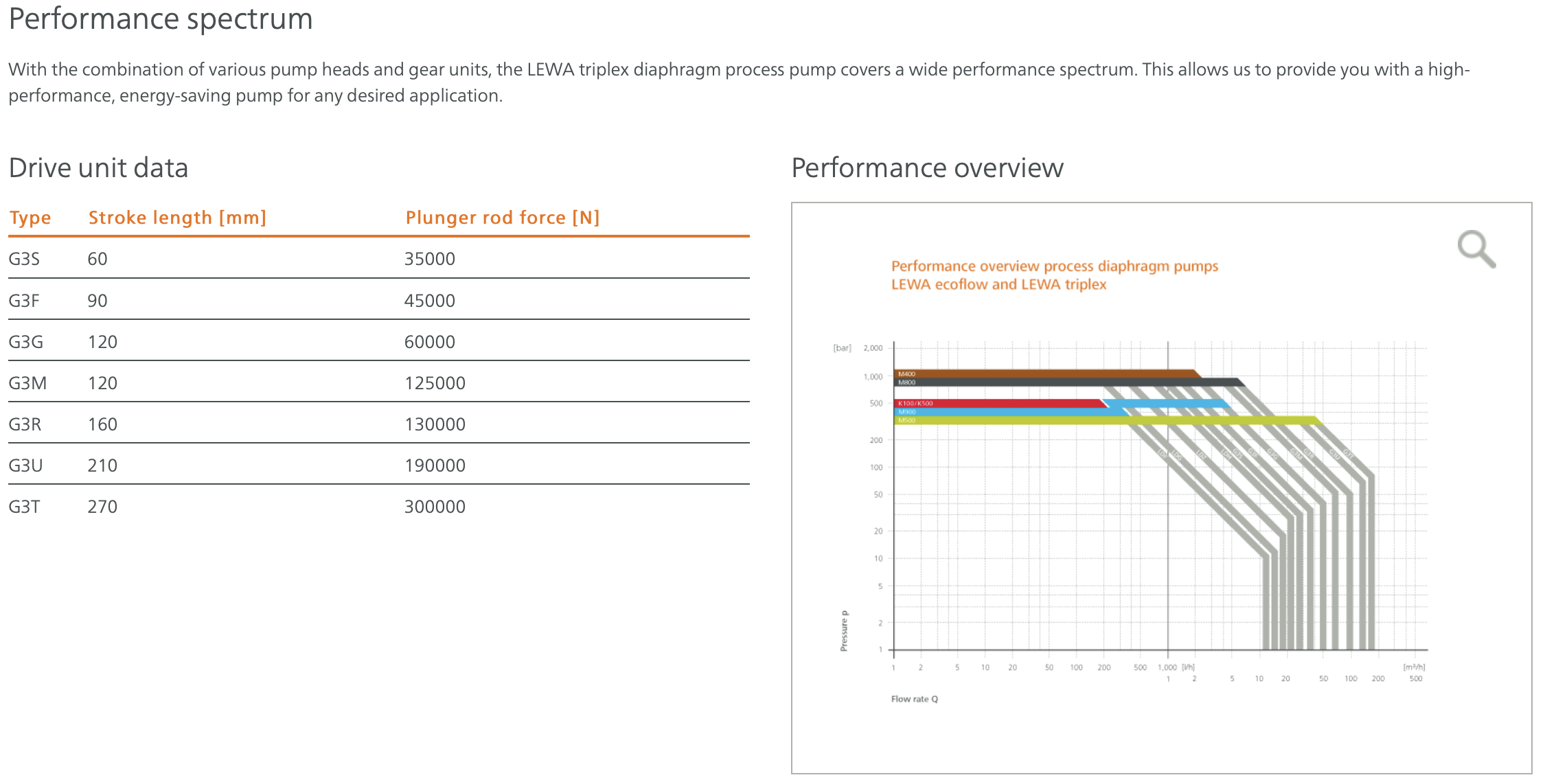

It is available in six different sizes, this allows its use in a wide assortment of processes and applications and lets it fulfill a wide range of requirements.

Solid, compact design

The LEWA triplex features a solid, durable and long-lasting overall design resulting from a one-piece crankcase and double bearing crankshaft. The space-saving monoblock design makes the triplex the world’s most compact process pump. This also makes it ideal for applications and processes with little installation space, such as oil drilling platforms.

Low-pulsation flow rate

The triplex series features very smooth running and a low-pulsation flow rate. The even phasing of pistons (eccentric offset) makes this possible. This means there is usually no need to install pulsation dampers in the pipeline system.

Unique suction capacity

The unique suction capacity of the LEWA triplex diaphragm process pump distinguishes it from other pumps. With an absolute suction pressure of up to 0.1 bar, it provides more than just a wide array of safe installation options. The operating costs for the entire system can also be decreased compared to other pumps.

Absolutely safe and reliable startup

Starting up the process pump is safe, reliable and easy: When not operating, a spring fixes the diaphragm in a neutral position at all times. This ensures that the diaphragm is never damaged due to incorrect positioning when starting up.

Safety and reliability in extreme operating states

For us, safety and reliability come first: The pump is not subjected to damage, even after operating errors occur or in extreme operating states. We offer maximum protection for user and machine through built-in safety mechanisms—not only when excess primary pressure is present, but also when the pressure or suction line is closed.

Suitable for virtually all fluids

The ecoflow series is suitable for almost all liquids thanks to its flexible design. Whether they are dangerous, toxic, abrasive, viscous, environmentally harmful or sensitive fluids, the user-specific configuration always gives you the correct diaphragm process pump.

Patented sandwich diaphragm

Our patented sandwich diaphragm is not just extremely durable, it is also well-protected. The LEWA DPS diaphragm protection system and diaphragm monitoring system report any damage to the diaphragm before it tears and has a chance to contaminate the pumped fluid.

Integrated pressure relief valve

A pressure relief valve in the hydraulic part of the diaphragm pump prevents potential overload situations during operation. This valve is individually adjustable and can therefore be adapted to different operating situations.

Vertical flange motor

Our triplex pumps up to the G3R size feature an integrated reduction gear unit and a vertically attached flange motor to save space.

API 675 standard

The triplex series fulfills the internationally valid quality standard of the American Petroleum Institute API 675. In this standard, all requirements for a displacement pump in industrial settings are defined with respect to design, construction and performance.

Low maintenance costs and a long service life

Our pumps feature extremely low maintenance costs and a long service life. If regular maintenance intervals are maintained, our diaphragm pumps can operate up to 40 years.

High energy efficiency

LEWA process pumps achieve the highest efficiency of all pump technologies. Our triplex series also combines high efficiency with low energy consumption.

Worldwide standards

We comply with globally applicable standards such as VDMA 24284 and 24286-10 when designing our pumps.

Hermetically sealed

Diaphragm pumps work without dynamic seals. This forms a hermetically sealed working area. No emissions escape to the outside, and contamination of the fluid is impossible.

OPTIONS

Customized valves

LEWA uses numerous special types of valves such as specially hardened valves for liquified gases or valves with minimal dead space for the food and pharmaceutical production.

Diverse connection geometries

Our pumps are equipped with all common connection geometries such as DIN standard, BASF's high-pressure standard, American ANSI, JIS, or your individual requirements. Customized configurations are possible.

Integration into process control systems

The signal acquisition of process control systems is achieved analogously or digitally. Flow rate is adjusted via electric or pneumatic stroke adjustment, alternatively by motor drive (FU).

Diagnostic connection

Our pumps and systems have connections that facilitate the diagnosis of their performance. This is done by a service technician on site or via remote monitoring.

Heating and cooling jacket

With heating and cooling jackets, our pumps are suitable for almost any temperature and can convey fluids at low temperatures or extreme heat.

Integrated pressure relief valve

An integrated pressure relief valve prevents potential overload situations. The valve is individually adjustable and can be adapted to different operating situations.

Special design materials

If the process demands it, wetted parts such as pumps heads and valves will be made of special materials such as stainless steel 316/316L (1.4401/1.4404), Hastelloy or Duplex steel and PVC.

Sanitary & hygienic Design

LEWA pumps and systems in sanitary & hygienic design are available for applications that require extremely high purity, such as food production and the pharmaceutical industry.

CIP and SIP capability

Many LEWA pumps, systems and units can be cleaned (Cleaning in Place) and sterilized (Sterilization in Place). To carry this out, it is not necessary to disassemble the equipment.
