MOYNO EZSTRIP TR MUNCHER

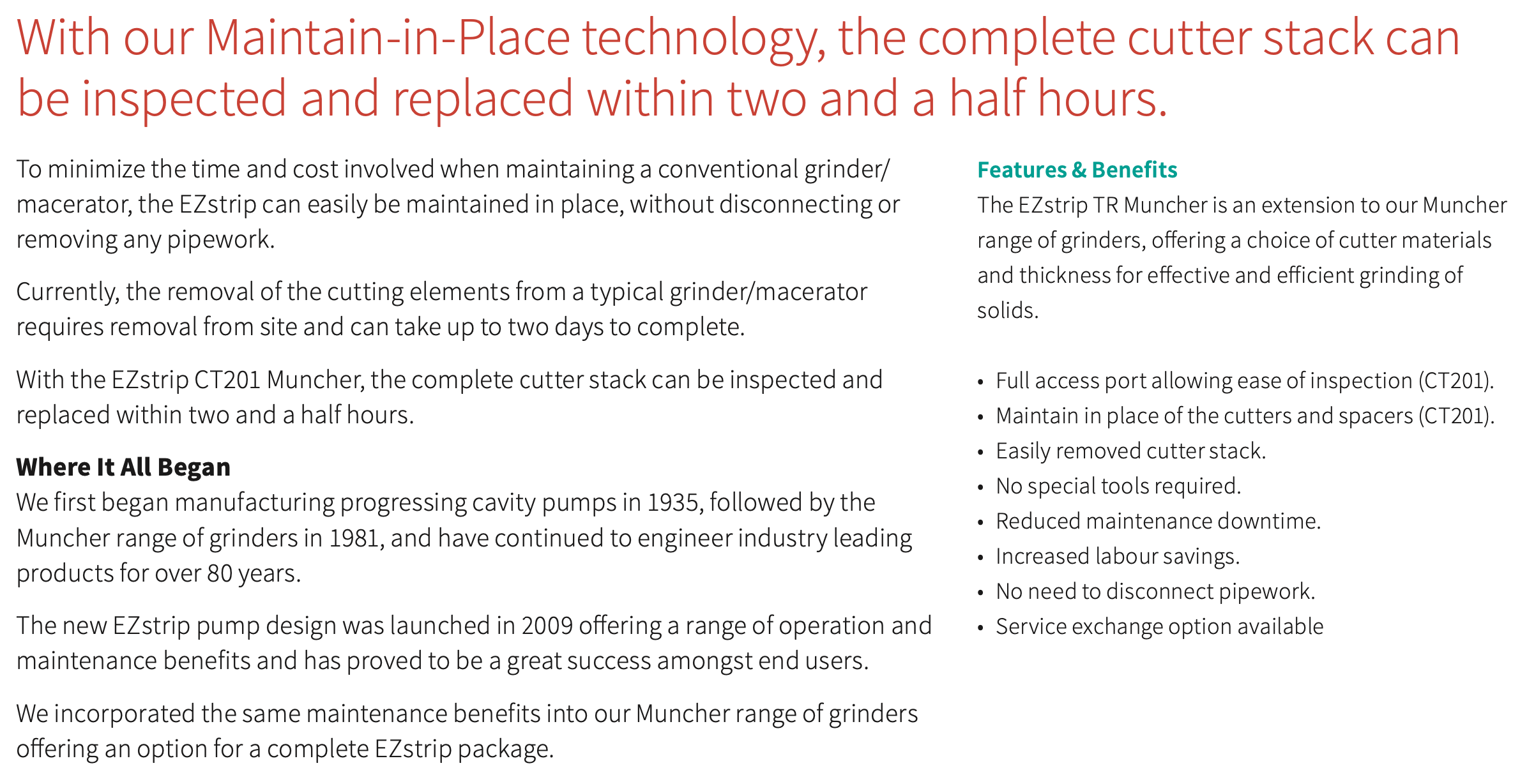

The latest addition to the EZstrip™ family is a range of grinders offering a competitive solution to solids grinding and sludge conditioning. The EZstrip™ TR Munchers® all house the quick release access port allowing the cutter assembly to be maintained in place without removing the equipment, reducing maintenance time.
FEATURES
CT201
Quick release access port allows the cutter assembly to be maintained in-place without removing the equipment and therefore reduces maintenance time.
Rotational speed produces high torque, resulting in lower operating power at 1.5 or 2.2kW, which are available with energy efficient motors.
Lower cutter tip speeds dramatically reduce wear rates. Slow speeds also ensure low noise and vibration, and good abrasion resistance.
Off-loading requirements for 'on-stand' tankering are matched by the Munchers capacity.
Pull-back cutter stack allows removal without disturbing the pipeline.
CT203/205
Mono ETOS cutters offer positive and effective solids maceration
Shafts operate at differential speeds to promote a tearing action on the solids
Pull back cutter stack allows removal without disturbing the pipeline
Cantilever shaft design eliminates the need for bottom bearings and seals, significantly reducing wearing components
Patented built-in trash trap with clean-out ports to catch any rejected material
Low cutter tip speeds, low power and low noise level
Each Muncher is supplied with a programmable logic controller (PLC) to protect the machine against damage and overloads
Typical Applications
Tanker reception
Pump protection
Fat/sludge conditioning
Abrasive sludge maceration
Screenings in waste water
Organic waste maceration
